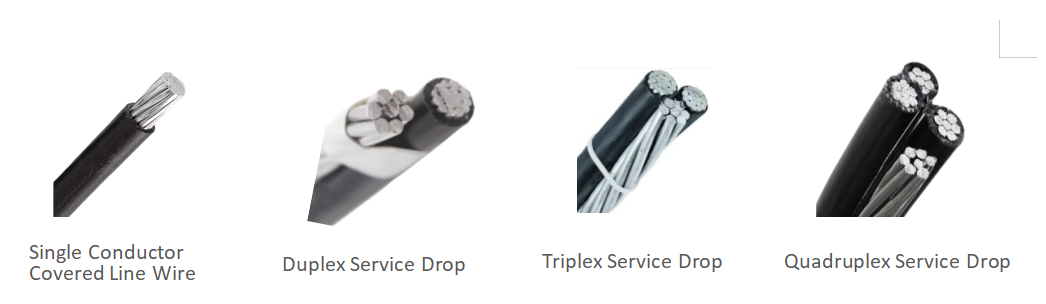

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations
APPLICATION
This type of cable is designed for overhead power distribution over long distances, combining high-strength aluminum conductors (AAC, AAAC, or ACSR) with durable XLPE/PVC insulation to ensure reliable performance in aerial installations.
CONSTRUCTION
All aluminium conductor, polyethylene or cross linked polyeth- ylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
CHARACTERISTIC
- Voltage rating: 12.7/22kV
- Normal operation 90°C.
- Emergency over load conditions 130°C.
- Short circuit conditions 250°C.
SPECIFICATION
|
Description
|
Phase conductor
|
Bare
Conductor(AAC)
|
Approx.Overall
Diameter&Weight
|
|
NO of Stranding&
Diameter
|
XLPE
Thickness
|
NO of.Stranding &
Diameter
|
Diameter
(mm)
|
Weight
kg/km)
|
|
1×10mm²+10mm²
|
7 /1.35
|
1.0
|
7/1.35
|
10.30
|
72
|
|
1×16mm²+16mm²
|
7/1.70
|
1.2
|
7/1.70
|
12.84
|
113
|
|
1×25mm²+25mm²
|
7/2.22
|
1.2
|
7/2.22
|
15.04
|
165
|
|
1×35mm²+35mm²
|
7/2.59
|
1.4
|
7/2.59
|
17.8B
|
231
|
|
1×50mm²+50mm²
|
7/3.10
|
1.4
|
7/3.10
|
19.68
|
318
|
|
1×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
21.38
|
380
|
|
1×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
22.98
|
456
|
|
2×10mm²+10mm²
|
7/1.35
|
1.0
|
7 / 1.35
|
12.30
|
116
|
|
2×16mm²+16mm²
|
7 /1.70
|
12
|
7 / 1.70
|
15.24
|
181
|
|
2×25mm²+25mm²
|
7/2.22
|
12
|
7 / 2.22
|
17.44
|
261
|
|
2×35mm²+35mm²
|
7/ 2.59
|
1.4
|
7 / 2.59
|
20.28
|
365
|
|
2×50mm²+50mm²
|
7/3.10
|
1.4
|
7 / 3.10
|
22.48
|
498
|
|
2×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
2588
|
622
|
|
2×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
29.08
|
774
|
|
3×10mm²+10mm²
|
7/1.35
|
1.0
|
7 / 1.35
|
14.76
|
160
|
|
3×16mm²+16mm²
|
7/1.70
|
1.2
|
7 / 1.70
|
18.28
|
249
|
|
3×25mm²+25mm²
|
7/2.22
|
1.2
|
7 / 2.22
|
20.92
|
357
|
|
3×35mm²+35mm²
|
7/2.59
|
1.4
|
7 / 2.59
|
24.33
|
499
|
|
3×50mm²+50mm²
|
7/3.10
|
1.4
|
7 / 3.10
|
26.97
|
678
|
|
3×70mm²+50mm²
|
19/2.22
|
1.4
|
19 / 2.22
|
31.05
|
864
|
|
3×95mm²+50mm²
|
19/2.59
|
1.4
|
19 / 2.59
|
34.89
|
1092
|
Contact us for more details
ABOUT US
WHY CHOOSE US
PROJECTS
PACKAGE
PARTNER
FAQ
Can ABC cables be used in high-temperature environments?
Yes, XLPE insulation can withstand temperatures up to 90°C under normal conditions and 250°C during short-circuit events, making it suitable for hot climates.
What is the maximum voltage rating for ABC cables with XLPE/PVC insulation?
Typically rated for up to 35 kV, but specific ratings depend on conductor size, insulation thickness, and application requirements.
Are you a manufacturer or trading company?
We are a professional cable manufacturer more than 20 years.
Can I get free samples?
The samples are free for you, you only pay the freight charge
What’s your Minimum Order Quantity?
We adopt flexible MOQ Policy. But the cable is very heavy, a suitable quantity could avoid the high freight.
Does your company accept OEM production?
Yes, We support OEM/ODM service
